Compact 3-Pole Connector for Fluid Pressure Sensor PSS140/260/420/600
Compact 3-Pole Connector for Fluid Pressure Sensor PSS140/260/420/600
Bosch Motorsport

Compact 3-Pole Connector for Fluid Pressure Sensor PSS140/260/420/600

SKU: D261.205.366-01
$16.00
Product subtotal: $16.00
  • Ach Direct Debit
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Bosch Motorsport

Compact 3-Pole Connector, Code 1

The Bosch mating connector for the PSS-140, PSS-260, PSS-420, and PSS-600 fluid pressure sensors, supplied with terminals and seals.

Overview

What Is It

Bosch part number D261.205.366-01, the specified mate for the PSS sensor family.

Bosch's PSS fluid pressure sensors use a 3-pin Bosch Compact connector carrying ground, signal, and the 5 V sensor supply. This kit is the housing Bosch lists as the mating connector on the PSS-140, PSS-260, PSS-420, and PSS-600 datasheets, along with the terminals and individual wire seals needed to build a sealed connection on your harness.

Ordering a new PSS sensor? Add one of these to the same order so the sensor goes straight onto your harness. It's also the part to keep in the spares box for loom repairs, or to order on its own when you already have sensors and just need the plug.

Compatibility

Which Sensors It Fits

Confirmed against Bosch Motorsport's published datasheets.

Sensor This connector (Code 1) Notes
Bosch PSS-140 ✓ 0 to 140 bar fluid pressure
Bosch PSS-260 ✓ 0 to 260 bar, commonly used for brake pressure
Bosch ABS M5 Brake Pressure Sensor PSS-260 ✓ Replacement pressure sensor for ABS M5 kits
Bosch PSS-420 ✓ 0 to 420 bar fluid pressure
Bosch PSS-600 ✓ 0 to 600 bar fluid pressure
Bosch PSS-10 – Uses the Code 2 connector, D261.205.339-01

Code 1 and Code 2 housings are keyed differently and will not mate with the wrong sensor. Match the code to your sensor's datasheet.

Key Features at a Glance

Bosch-Specified Mate

The exact connector Bosch lists for the PSS-140, PSS-260, PSS-420, and PSS-600.

Code 1 Keying

Coded so it only mates with Code 1 sensor housings, which prevents plugging into the wrong sensor.

Sealed Connection

Individual wire seals keep moisture and fluids out of the terminals.

Complete Kit

Housing, terminals, and seals in one kit, ready to crimp.

Three Circuits

Ground, signal, and 5 V supply, matching the PSS sensor pinout.

Spare or New Loom

Ideal for loom repairs, new sensor runs, or keeping spares in the trailer.

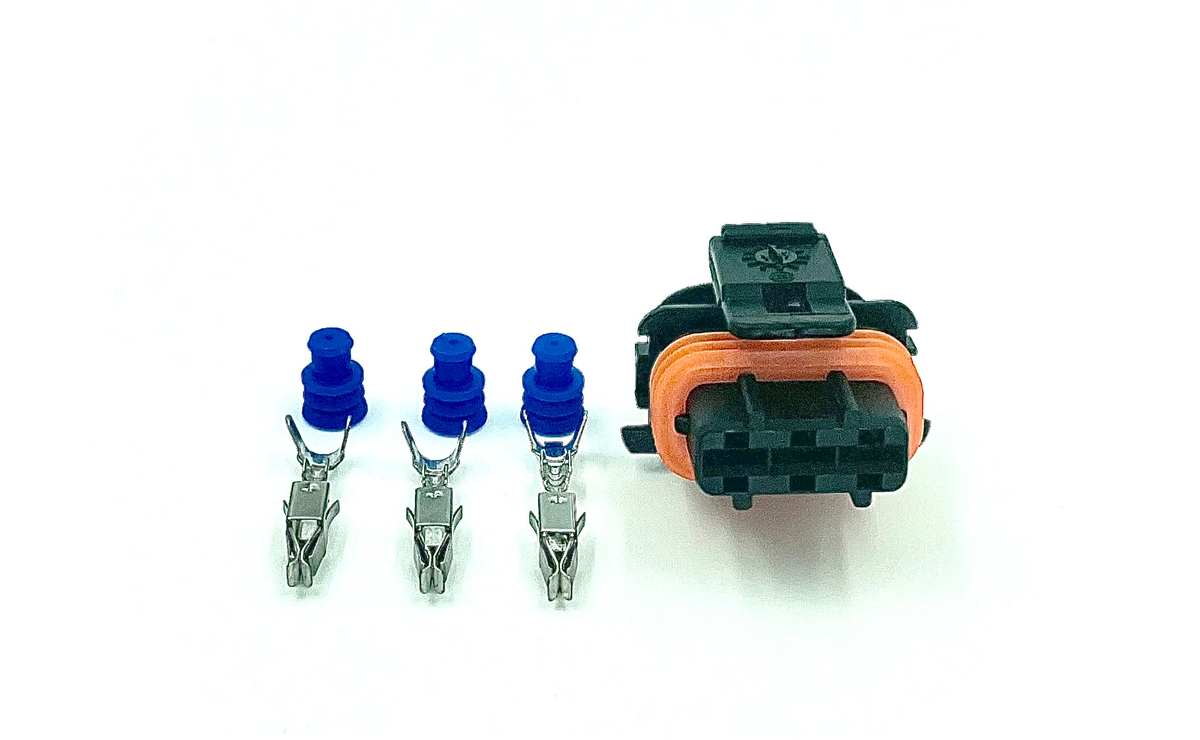

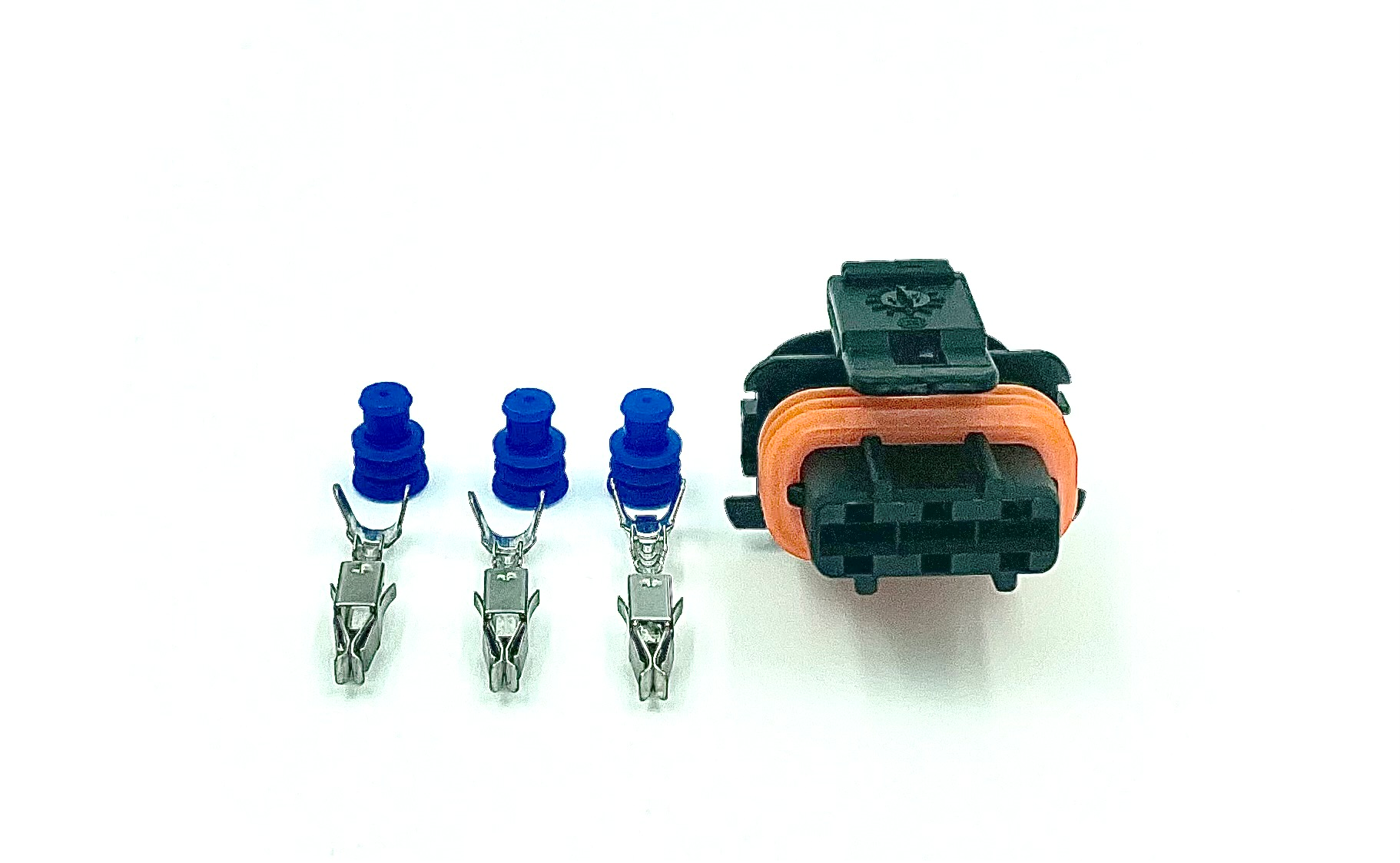

In the Kit

What's Included

Item Included
Bosch Compact 3-pole housing, Code 1 (D261.205.366-01) ✓
Terminals ✓
Wire seals ✓
Pressure sensor –

Related Products

SensorsBosch PSS Pressure SensorsPSS-140, PSS-260, and PSS-420 fluid pressure sensors. ABS M5ABS M5 Brake Pressure Sensor PSS-260Replacement brake pressure sensor for Bosch ABS M5 kits. Code 2Compact 3-Pole Connector Code 2The Code 2 version, used on sensors such as the PSS-10.
FAQ

Common Questions

Which Bosch pressure sensors use this connector?

Bosch lists D261.205.366-01 as the mating connector for the PSS-140, PSS-260, PSS-420, and PSS-600, including the PSS-260 used in Bosch ABS M5 kits.

What's the difference between Code 1 and Code 2?

The code is the keying on the housing. A Code 1 connector only mates with a Code 1 sensor, and Code 2 with Code 2. This kit is Code 1. The PSS-10, for example, uses the Code 2 connector.

Does it come with terminals and seals?

Yes. The kit includes the housing, terminals, and wire seals.

Do I need this if I buy a PSS sensor?

Yes, unless your harness already has a matching Code 1 connector at that location. The sensor needs a matching plug on the harness side, so most new installs need one.
