CAN Input Expander
Shiftec

CAN Input Expander

SKU: ZE073-1
$855.00
$855.00
Subtotal: $855.00

Orders shipped via UPS (FedEx Optional)

In stock items shipped within 1-3 business days.

Pre-order items must first be sent from our distributor to our office. Once received it will then ship to you. There may be some delay due to manufacturer availability. Please reach out with any lead time requirements.
CAN Input Expander

Shiftec

CAN Input Expander

$855.00
CAN Input Expander

Shiftec

CAN Input Expander

$855.00
Product Description

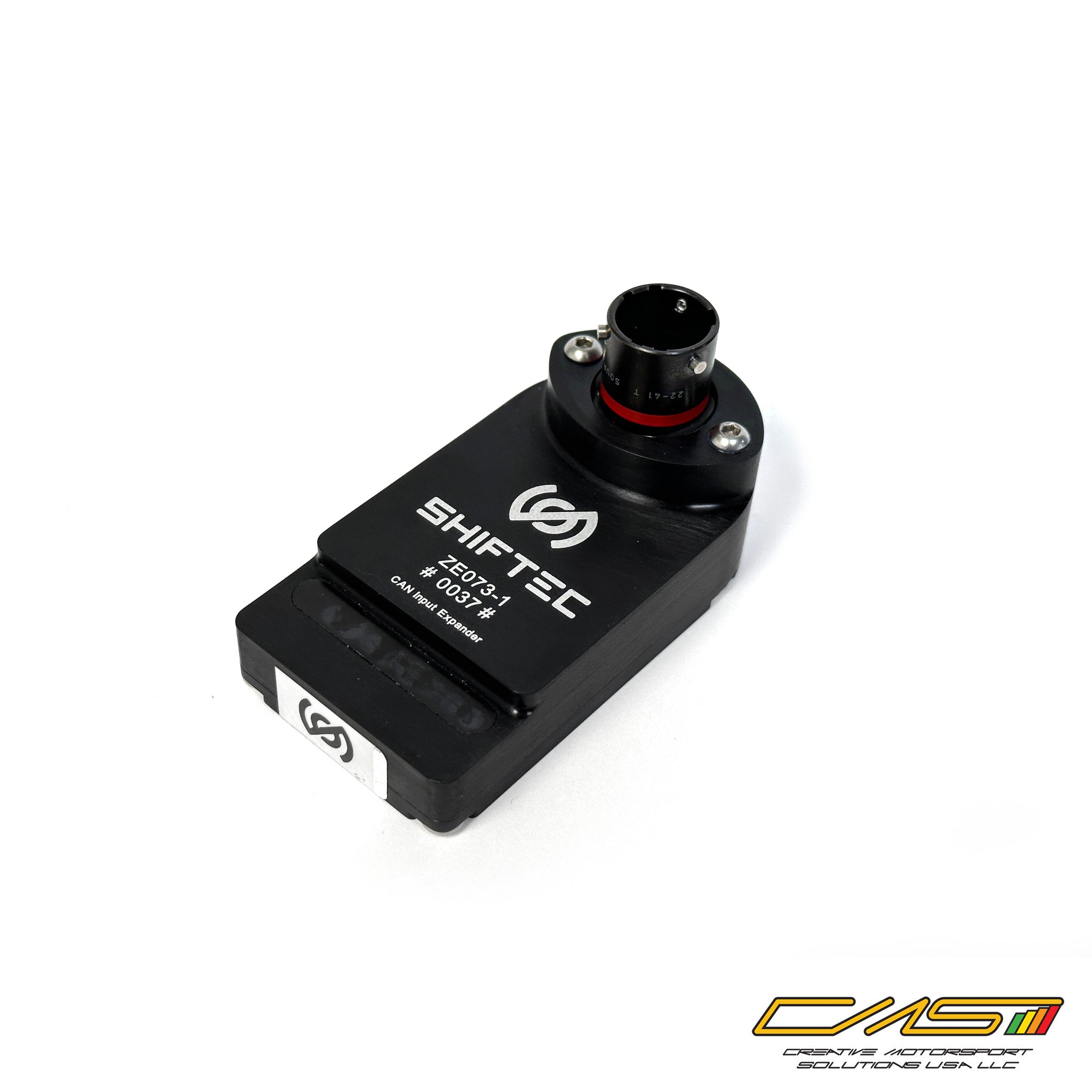

This evolution of the successful lightweight and compact CAN Input Expander allows a user to take in up to 8 analogue inputs or 8 speed inputs and transmit them out over the vehicle CAN Bus.

This allows easy logging of position, temperature, pressure and other parameters. Using the expander allows the vehicle wiring loom to be made much simpler and lighter. The rugged casing is CNC machined from aluminum billet and connection is through an industry standard autosport connector. The messages can be converted to any scaled data format and transmitted in any standard or extended ID message. CAN information may also be translated into a different format or message. Speed  signals may be read from 2Hz up to 10kHz. It allows for different length messages and both Intel and Motorola formats in any byte position. It also includes internal temperature and system voltage measurement. Set up is done with bespoke user friendly Shiftec iFace software.

Product Highlights:

  • Convert analogue (0-5V) signals to CAN data.
  • Translate CAN data to new message / format / scaling
  • 8 x 12bit A to D inputs
  • Speed signal capability on all inputs
  • Inputs can be run as either 8 analogue, 8 speed or a combination of both
  • 1KHz sampling frequency rate
  • User defined CAN transmit and receive
  • Scale raw analogue inputs via 2D calibration tables.
  • 10 x CAN receive channels available
  • 6 x CAN transmit channels available
  • User selectable CAN format
  • Channel status LED display
  • Software selectable pull up/downs
  • Software selectable CAN termination
