BTX Beacon Transmitter
MoTeC

BTX Beacon Transmitter

SKU: M ADL BTX
$790.00
$790.00
Subtotal: $790.00

Orders shipped via UPS (FedEx Optional)

In stock items shipped within 1-3 business days.

Pre-order items must first be sent from our distributor to our office. Once received it will then ship to you. There may be some delay due to manufacturer availability. Please reach out with any lead time requirements.
BTX Beacon Transmitter

MoTeC

BTX Beacon Transmitter

$790.00
BTX Beacon Transmitter

MoTeC

BTX Beacon Transmitter

$790.00
Product Description

  • Specifications

    Outputs

    • Coded infra-red beam

    Range up to 40 meters (130 ft) when used with BR2

    • 3 color LED status indicator for:

    Power OK

    Low battery

    Fault or very low battery

    Power

    • External via a 12 V rechargeble battery (10Ahr capacity recommended)

    • Power consumption 70 mA typical

    Compatible with

    • BR2

    Physical

    • Case size 90 x 80 x 115 mm

    • Weight 260 grams

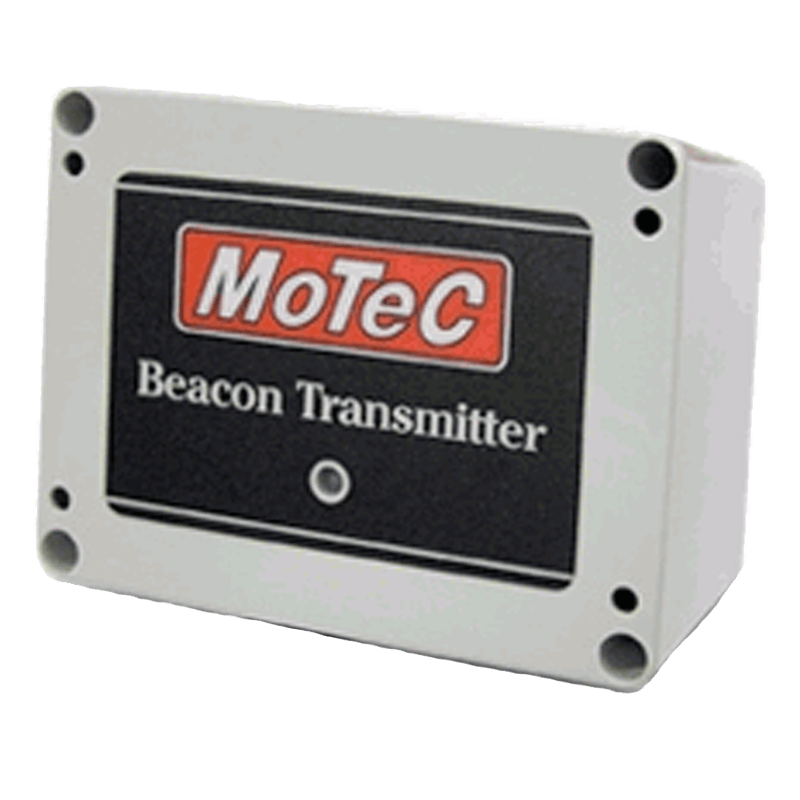

    The Beacon Transmitter (BTX) is the track side mounted part of the lap timing system.

    Mounting the BTX

    The narrow infrared beam emitted by the BTX should be aimed parallel to the road and at the same height above the road as the receiver in the vehicle. The transmitter mounting system should therefore be capable of height and tilt adjustment.

    The spacing between adjacent transmitters must be a least 6 meters.

    Please Contact Us for further information.

  • Documents

    Title Type
    🗎 Operations Guide PDF
