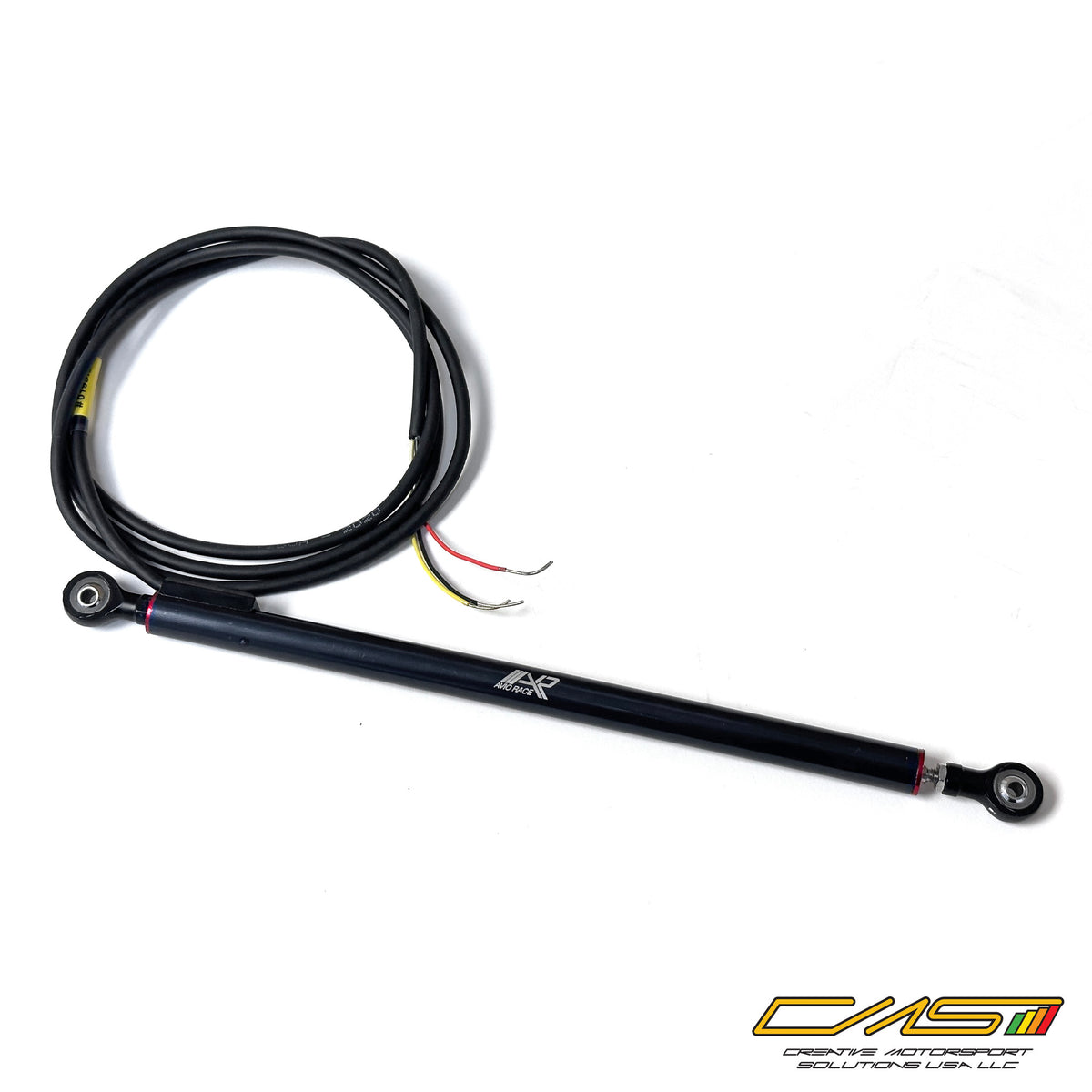

Miniaturized Linear Potentiometer - 9.5mm Diameter
SKU:
DIA9.5-12.5
- $390.00
- $390.00
- Unit price
- per
Orders shipped via UPS (FedEx Optional)
In stock items shipped within 1-3 business days.
Pre-order items must first be sent from our distributor to our office. Once received it will then ship to you. There may be some delay due to manufacturer availability. Please reach out with any lead time requirements.
High performance and reliable linear potentiometers, Ideal for applications such as car suspensions, motorcycle forks and shock absorbers, brake pedals and many other applications.
The sensors are based based on “conductive plastic” technology which will means consistent readings for a very long time. The resolution is virtually infinite with these sensors as well.
Rated at over 25M cycles, these sensors will deliver superior data for a very long time.
|
Mechanical Stroke (mm +/- 0.5mm) |
Minimum Mounting Distance (+/-2mm) |
|
| 12.5 | 86 | 800 |
| 25 | 113 | 1,700 |
| 50 | 123 | 3,400 |
| 75 | 163 | 5,000 |
| 100 | 194 | 6,700 |
| 125 | 219 | 8,400 |
| 150 | 244 | 10,000 |
