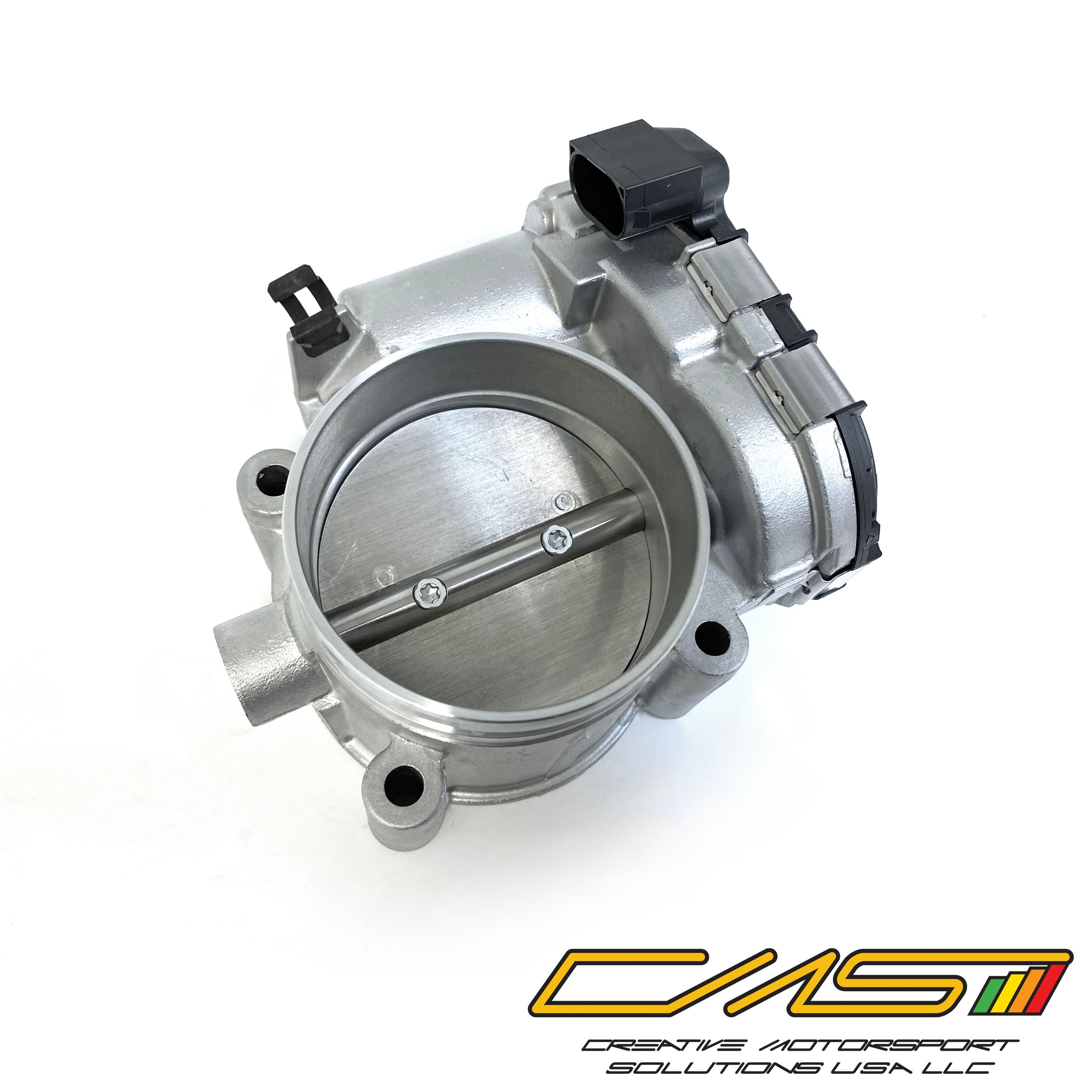

Bosch Electronic Throttle Body
Bosch Motorsport Electronic Throttle Body, 32 to 82 mm DBW
Bosch Motorsport

Bosch Motorsport Electronic Throttle Body, 32 to 82 mm DBW

SKU: 0280.750.148
$144.00
Bore Diameter: 32mm
Product subtotal: $144.00
  • Ach Direct Debit
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Bosch Motorsport

Electronic Throttle Body (Drive-by-Wire)

Ten bore sizes from 32 to 82 mm, each with redundant position sensing and a fail-safe idle position, for engines running electronic throttle control.

Precise Drive-by-Wire Airflow Control

The Bosch Electronic Throttle Body (ETB) controls the fresh air into a spark-ignition engine as part of an electronic throttle control (ETC) system. A typical ETC system has three parts: the throttle body, an accelerator pedal module, and an ECU with ETC functionality. The ETB connects directly to any control unit that supports ETC.

Each body uses two redundant position sensors with opposing outputs (0 to 5 V and 5 to 0 V across 0 to 90°), so the ECU can cross-check throttle position. Every unit defaults to an idle air position, and flex-fuel, CNG and LPG applications are permitted when fuel is injected after the throttle body.

Mating Connectors

Wire It Right the First Time

Most sizes use the Bosch D261.205.358-01 connector; the 46 and 52 mm bodies use D261.205.356-01. Order the correct one with your throttle body, or tell us your ECU and we can help with the loom side.

Shop the ETB Connector Ask About My ECU
Overview

Key Features at a Glance

10 Bore Sizes

From 32 mm (1.26 in) to 82 mm (3.23 in), so you can match the throttle to your manifold and airflow.

Redundant Position Sensors

Two outputs, 0 to 5 V and 5 to 0 V over 0 to 90°, for ECU plausibility checks.

Fail-Safe Idle Position

Every ETB has a default idle air position built in.

Flex-Fuel, CNG and LPG

Permitted when fuel is injected downstream of the throttle body.

Direct ECU Connection

Connects straight to any control unit with electronic throttle control.

Wide Temperature Range

Rated from -40°F to 284°F (-40°C to 140°C).

Bore Size and Part Number Chart

Pick your size from the menu above. Every size in this chart is a genuine Bosch electronic throttle body.

Bore Bosch part number Flange diameter Weight Max air flow* Mating connector
32 mm (1.26 in) 0280.750.148 1.57 in (40 mm) 2.0 lb (0.9 kg) 869 lb/h (394 kg/h) D261.205.358-01
40 mm (1.57 in) 0280.750.149 1.97 in (50 mm) 2.0 lb (0.9 kg) 1,532 lb/h (695 kg/h) D261.205.358-01
46 mm (1.81 in) F02U.V01.171-01 2.28 in (58 mm) 2.1 lb (0.95 kg) 2,156 lb/h (978 kg/h) D261.205.356-01
50 mm (1.97 in) 0280.Y05.107-10 Specs on request Specs on request Specs on request Specs on request
52 mm (2.05 in) F02U.V01.184-01 2.28 in (58 mm) 2.1 lb (0.95 kg) Not published D261.205.356-01
54 mm (2.13 in) 0280.750.150 2.76 in (70 mm) 2.1 lb (0.95 kg) Not published D261.205.358-01
60 mm (2.36 in) 0280.750.151 2.70 in (68.5 mm) 2.1 lb (0.95 kg) Not published D261.205.358-01
68 mm (2.68 in) 0280.750.156 Specs on request Specs on request Specs on request Specs on request
74 mm (2.91 in) 0280.750.474 Specs on request Specs on request Specs on request Specs on request
82 mm (3.23 in) 0280.750.101 3.54 in (90 mm) 2.4 lb (1.1 kg) Not published D261.205.358-01

*At 85° throttle angle; ambient conditions 1,000 mbar air pressure, 600 ± 25 mbar differential pressure, 40% relative humidity, 75°F (24°C). Bosch does not publish air flow for every size. For 50, 68 and 74 mm dimensions and drawings, contact us.

Technical Specifications

Supply Voltage 6 to 16 V
Sensor Supply Voltage 5 ± 0.2 V
Max. Allowed Generator Current Under 10.0 A
Output Signal I 0 to 5 V for 0 to 90°
Output Signal II 5 to 0 V for 0 to 90°
Idle Idle air default position on all sizes
Fuel Compatibility Gasoline; flex-fuel, CNG and LPG when injected after the throttle body
Operating Temperature -40°F to 284°F (-40°C to 140°C)
Vibration Up to 250 m/s² (200 to 220 Hz), per Bosch data sheet profile
Accessories

Complete Your Setup

Bosch 6-way connector for electronic throttle body

ETB Connector D261.205.358-01

View Product
Bosch connector kit D261.205.356-01

Connector D261.205.356-01 (46/52 mm)

View Product

Downloads

Document Type
Electronic Throttle Body Data Sheet PDF
Electronic Throttle Body Pin Layout PDF

Why Buy Your Throttle Body from Creative Motorsport Solutions?

Creative Motorsport Solutions has been active in professional and club racing for over 25 years, and we're an authorized Bosch Motorsport dealer. We help you pick the right bore, connector and wiring for your engine and ECU before it ships, and we're here after the sale too. You're talking to racers, not a call center.

Frequently Asked Questions

What sizes does the Bosch electronic throttle body come in?
We offer 10 bore sizes: 32, 40, 46, 50, 52, 54, 60, 68, 74 and 82 mm. The size chart above lists the Bosch part number, flange diameter, weight and mating connector for each.

Is this a drive-by-wire (DBW) throttle body?
Yes. It's an electronic, drive-by-wire throttle body: an ECU with electronic throttle control drives the motor and reads the two position sensors, working with an accelerator pedal module instead of a throttle cable.

What connector does the Bosch throttle body use?
Most sizes use Bosch connector D261.205.358-01. The 46 and 52 mm bodies use D261.205.356-01. Both are available from us, and other motorsport and automotive connectors can be supplied on request.

Which ECUs can run a Bosch electronic throttle body?
Any ECU with electronic throttle control (ETC) functionality. The ECU needs to read both position outputs and drive the throttle motor. Send us your ECU model and we'll confirm.

Can I use it with E85, flex fuel, CNG or LPG?
Yes, Bosch permits flex-fuel, CNG and LPG applications as long as the fuel is injected into the air flow after the throttle body.

How do I choose the right bore size?
Start with your intake manifold's flange and your engine's airflow needs, then check that your ECU's throttle tables can handle the larger bore. Tell us your engine, manifold and ECU and we'll recommend a size.

Not Sure Which Size You Need?

Send us your engine, manifold and ECU details and we'll help you pick the right bore and connector.

Contact Us
