Temperature Sensor NTC M12
Temperature Sensor NTC M12
Bosch Motorsport

Temperature Sensor NTC M12

SKU: 0280.130.026
$31.00
Product subtotal: $31.00
  • Ach Direct Debit
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Bosch Motorsport

Temperature Sensor NTC M12

A compact, production-quality fluid temperature sensor for oil, coolant, and fuel, reading -40 to 266°F (-40 to 130°C) from a standard M12 x 1.5 port.

Overview

What Is It

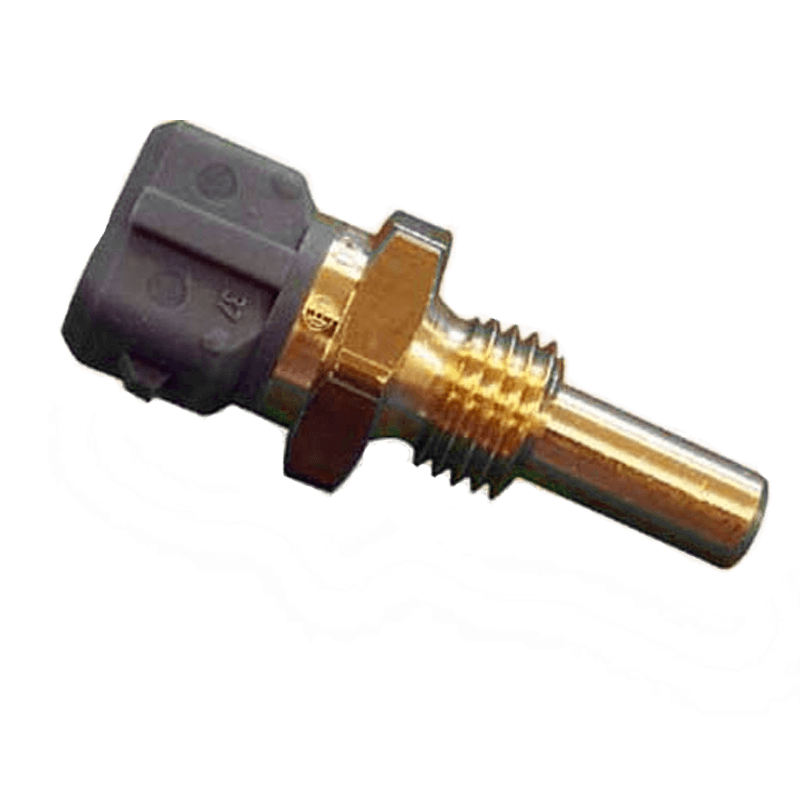

Bosch part number 0280.130.026, a two-wire NTC thermistor in a compact threaded housing built for engine bays.

Oil, water, and fuel temperatures are some of the first channels any engine program logs, and some of the most important ones for an ECU to see. The NTC M12 is the sensor Bosch builds for that job: a Bosch production part in a compact body that threads into an M12 x 1.5 port, with a two-pin Jetronic connector on top.

NTC stands for negative temperature coefficient. As fluid temperature rises, the sensing element's resistance falls, from about 45,000 Ω at -40°F down to about 89 Ω at 266°F. Wired to an ECU or logger input with a pull-up resistor, that changing resistance becomes a voltage your system converts back to temperature, either as a control input for the engine or as a logged channel for analysis.

Key Features at a Glance

-40 to 266°F Range

Covers cold starts through high operating temperatures for oil, coolant, and fuel (-40 to 130°C).

Simple Two-Wire Hookup

Signal and signal ground only. Connects to most ECUs and loggers with a 1 or 3 kΩ pull-up.

Production-Grade Build

A Bosch production sensor rated to 600 m/s² vibration, built for daily life on an engine.

E85 Compatible

Bosch rates it for E85 and M22 bio fuels as well as gasoline, oil, and water.

Compact, 1 oz

About 1 oz (29 g) with a 19 mm hex. Fits where larger senders don't.

Any Orientation

Bosch allows any mounting orientation, so it goes wherever your port is.

Specifications

Technical Specification

Per Bosch Motorsport's datasheet for 0280.130.026.

Measurement

Measuring range -40 to 266°F (-40 to 130°C)
Accuracy at 77°F (25°C) ±2.5°F (±1.4°C)
Accuracy at 212°F (100°C) ±6.1°F (±3.4°C)
Response time (τ63, still water) Under 15 s

Electrical

Characteristic NTC
Nominal resistance at 68°F (20°C) 2.5 kΩ ±5%
Recommended pull-up 1 or 3 kΩ
Pinout Pin 1: SIG+, Pin 2: SIG-

Mechanical

Thread M12 x 1.5 male
Wrench size 19 mm
Installation torque 18 lb-ft (25 Nm)
Weight (without wire) Approx. 1.0 oz (29 g)

Connector & Environment

Sensor connector Bosch Jetronic, 2-pole
Mating connector Jetronic 2-pole, D261.205.288-01
Max. vibration 600 m/s²
Storage temperature 32 to 212°F (0 to 100°C)
Calibration

Resistance vs. Temperature

Reference points from Bosch's characteristic curve. Use the free Bosch sensor configuration file for full calibration.

Temperature Resistance
-40°F (-40°C) 45,313 Ω
68°F (20°C) 2,500 Ω
212°F (100°C) 187 Ω
266°F (130°C) 89 Ω
Before You Install

Installation Notes

  • A sealing washer is not included. Use a sealing washer suited to your port and fluid.
  • Torque to 18 lb-ft (25 Nm) with a 19 mm wrench.
  • Any mounting orientation is fine, but place the tip in moving fluid for the most representative reading.
  • Wire to an analog input with a 1 or 3 kΩ pull-up resistor. Most ECUs and loggers have this built into their temperature inputs.
  • The mating connector is the Bosch Jetronic 2-pole, D261.205.288-01. Contact us if you need one supplied with your sensor.

Downloads

PDFDatasheet PDFCAD Drawing ZIPConfiguration Note ZIP3D Data
FAQ

Common Questions

What connector mates with the NTC M12?

The sensor uses a 2-pole Bosch Jetronic connector. Bosch lists the mating connector as D261.205.288-01.

Can I use it for oil, coolant, and fuel?

Yes. Bosch designed it for fluid temperatures such as oil, water, and fuel, and rates it for E85 and M22 bio fuels.

Will my ECU or logger read it directly?

Most will. It connects directly to temperature inputs that use a pull-up resistor, typically 1 or 3 kΩ. Bosch offers a free sensor configuration file for Bosch data logging, included in the Downloads above.

Is a sealing washer included?

No. Bosch supplies the sensor without a seal, so use a sealing washer that suits your port and fluid.

What is the thread size?

M12 x 1.5 male, with a 19 mm hex. Install at 18 lb-ft (25 Nm).
