Dual Half Bridge
MoTeC

Dual Half Bridge

SKU: M DHB
$482.00
$482.00
Subtotal: $482.00

Orders shipped via UPS (FedEx Optional)

In stock items shipped within 1-3 business days.

Pre-order items must first be sent from our distributor to our office. Once received it will then ship to you. There may be some delay due to manufacturer availability. Please reach out with any lead time requirements.
Dual Half Bridge

MoTeC

Dual Half Bridge

$482.00
Dual Half Bridge

MoTeC

Dual Half Bridge

$482.00
Product Description

  • Specifications

    Electrical

    • Output current

    Continuous DC current 20 A (total)

    Peak surge current 500 A

    • Max. operating frequency 50 kHz @ 28 V

    • Switching delay, typical

    High to low 6.5 µsec

    Low to high 6.5 µsec

    • Input threshold, typical

    High 2.8 V

    Low 2.1 V

    • Operating voltage

    7.0 V to 55 V with under voltage lockout

    Physical

    • Size 31.4 x 38.0 x 14.0 mm

    • Weight approximately 60 grams plus connectors

    • Connectors

    Power: 2 pin DTP Male

    Motor /Output: 2 pin DTP Female

    Input: 2 pin DTM Male

    • Maximum case temperature 125 °C

    Compatible with

    • All MoTeC ECUs

    • All MoTeC Dash Loggers

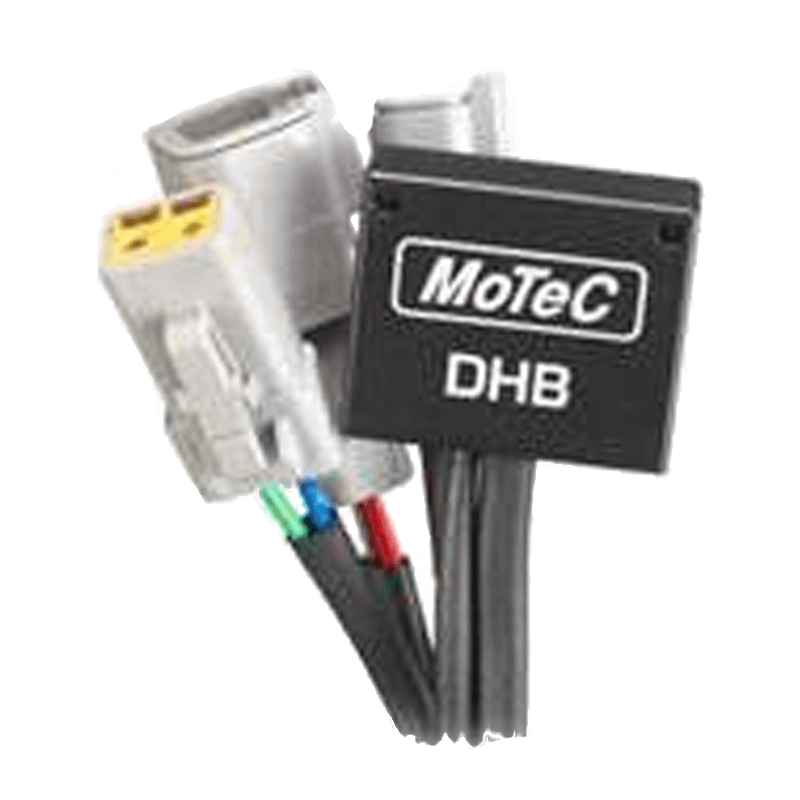

    The Dual Half Bridge (DHB) is a high current amplifier which allows low current auxiliary outputs to drive high current loads such as motors. It contains two high current half bridge outputs enabling it to drive a single motor in two directions, or drive two motors in a single direction. It is also capable of high speed PWM, which can be used for speed control of motors and for other purposes.

    The DHB connects to any auxiliary output of a MoTeC ECU or Dash Logger, which performs the control function, such as PWM speed control, direction control or servo control.

    The fully sealed case makes the DHB suitable for under hood mounting.s.

    Application examples:

    • Servo motor e.g. active wing control, boat trim control, inlet runner length control, variable valve lift.

    • Motor speed control e.g. electric water pump, thermo fan, fuel pump.

    • Solenoid control.

    Please Contact Us for further information.
